Navigation Update

PC Prepare for
Update
PC Navigation Updater
Download
PC Start Navigation
Updater
PC Select Navigation
&Download
Vehicle Update Guide
Step One Select Navigation
Update Step Image

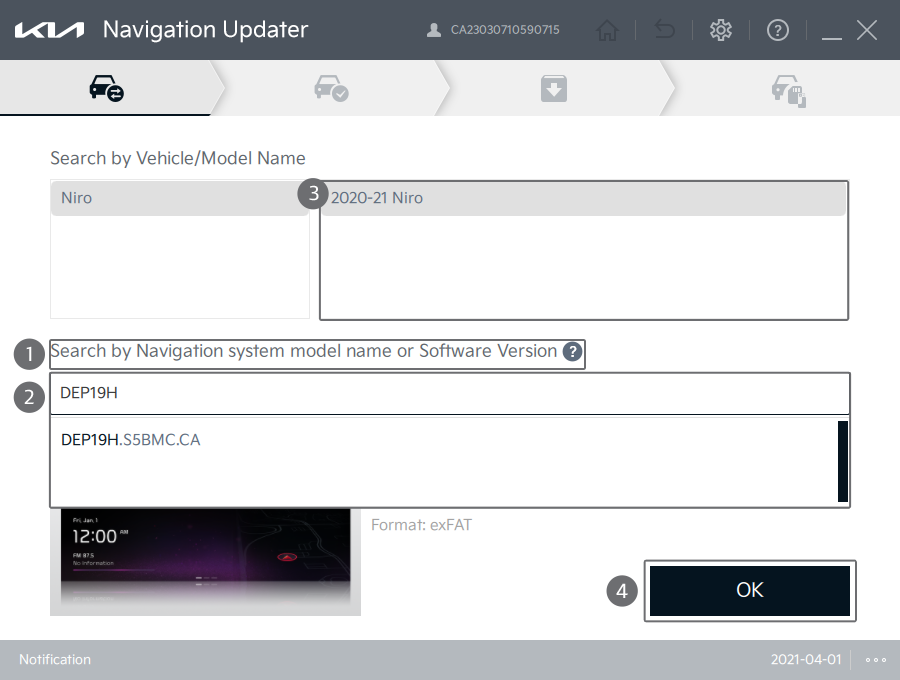

Search by vehicle/model name

  • 1
  • Enter your navigation model name or software version
    (You can also search your vehicle by model year or just clicking the mouse)
  • 2
  • Select your information from the drop-down list
  • 3
  • Select your vehicle model
  • 4
  • Click "OK" to view the vehicle information
  • ※ The software version information can be found in Settings >
    System Information > SW Information or Settings > System
    Information > Version Information
    Subject to minor variations depending on the vehicle
Update Step Image

Confirm your vehicle

  • 1
  • Please check that selected vehicle is correct
  • 2
  • Select a location in which to save the update file(s)/data
  • 3
  • Click "Change Vehicle" if you need to change your vehicle
  • 4
  • Click "Next"
Step Two Select Storage Location
Update Step Image
  • 1
  • Select a location in which to save the update file(s)/data
  • 2
  • Click "OK" to proceed to the next step
  • ※ Even if you select the storage location to the SD card/USB,
    the files are temporarily saved on the hard disk and then
    copied to the SD card/USB. Please check that the hard disk
    has enough storage before proceeding with the update
Step Three Download update file
Update Step Image
  • 1
  • While the update is in progress, the update progress is shown in percentage/text
  • 2
  • Click "Pause" to temporarily stop the update and "Continue" to continue updating
Step Four Plug in portable device to personal computer
Update Step Image
  • 1
  • Copy to a SD card/USB device
    - Copy the Update files saved on your hard disk drive
    to a SD card/USB device
  • 2
  • Open folder
    - Press the “Open Folder” button to open the folder to allow you
    to check the saved files
  • 3
  • Select another vehicle
    - Press the “Select Another Vehicle” button to return to the page
    where you can select a different vehicle

Tips for Copying an Update to a Portable Device

1. Saving to a USB device or SD card - Save the update file(s) in the main/top (root) directory of
your portable device
